32A Spring Lever Push Fit Reusable 5 Way Wire Connectors~1606

32A Spring Lever Push Fit Reusable 5 Way Wire Connectors~1606

Regular price £1.99 GBP
Regular price £2.99 GBP Sale price £1.99 GBP
33% OFF Sold out
Tax included. Shipping calculated at checkout.

DISCOUNT FOR ENTRY ORDERS

GET 10% OFF

Use Code : VINEWOT

4910 in stock

Free Shipping | over £20

UK free Shipping on order over £20

Return & Refund

  • We have 30 days Return Policy, If You Wish To Cancel Your Order within this period please return it to us unused & in re-sellable condition within 30 days and we will issue full refund.
  • Buyer should pay for the return postages.
  • Any return, please send by recorded post only.

Estimate delivery

Estimate delivery times:2-4 days(UK),7-15 days(Europe).

View full details

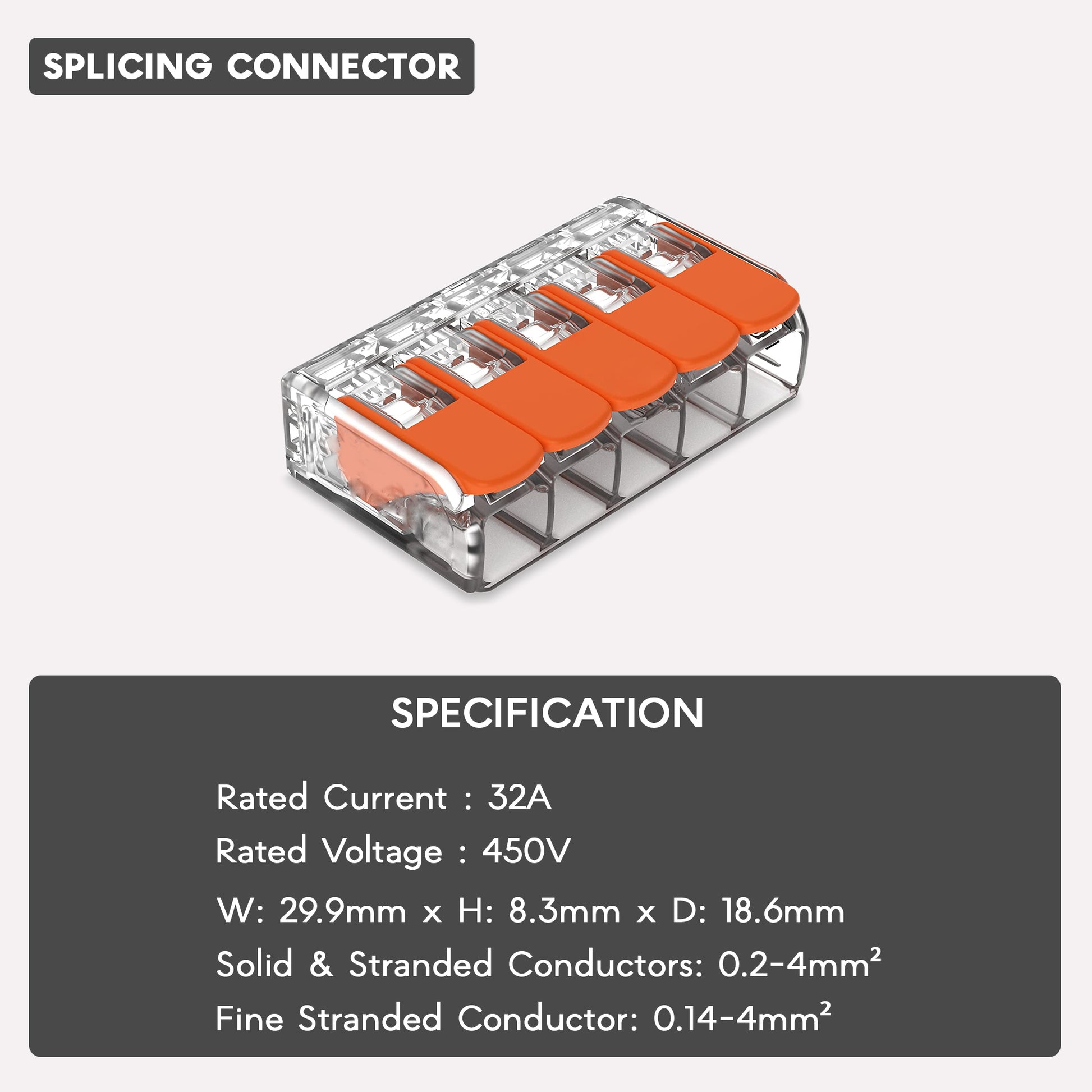

Specifications:

  • Colour: Clear and Orange

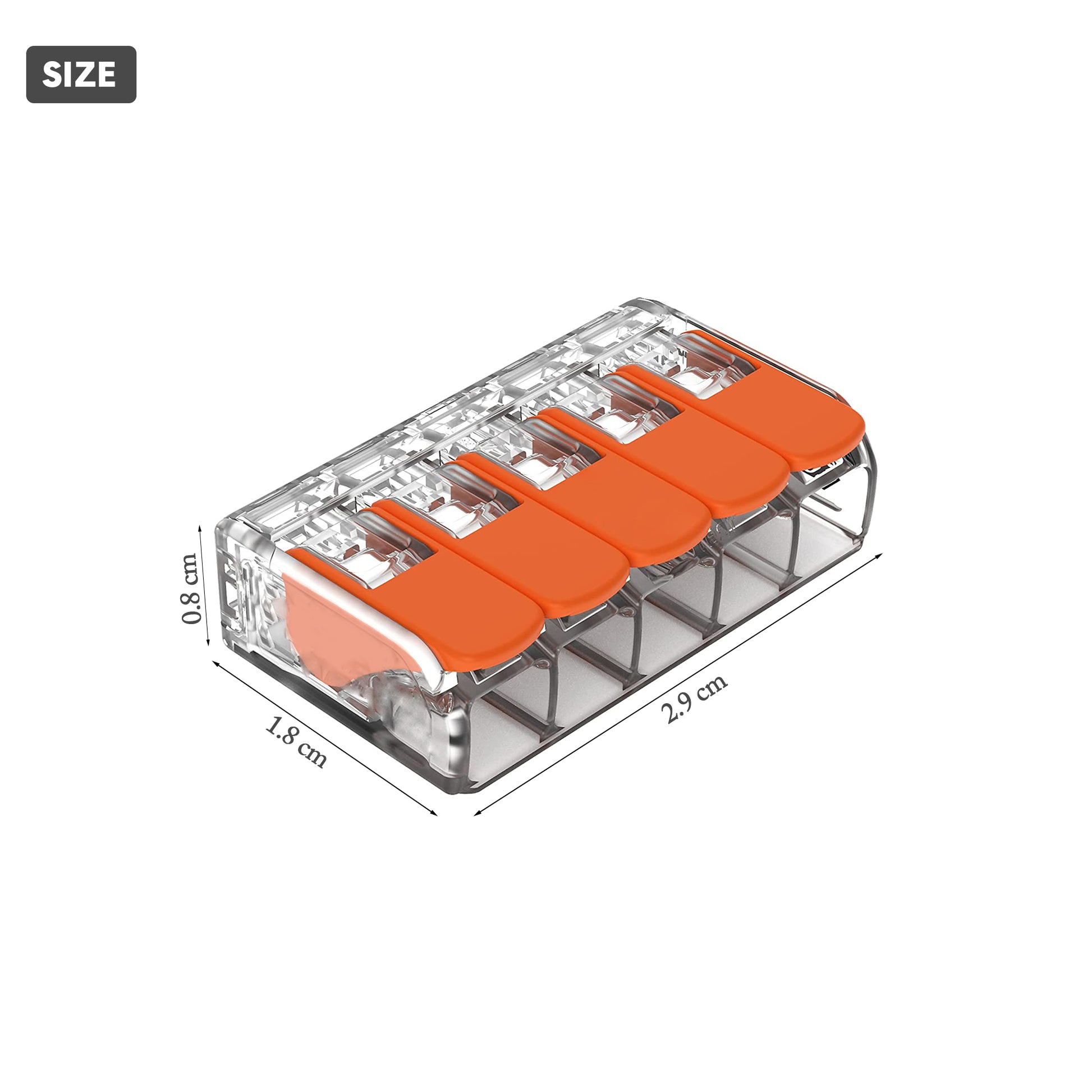

  • Size: 5 Way: 20 x 26 x 19 mm (L x W  x H)  Intensity: EN 32 A
  • Max. Isolation: 4 kV
  • Max. Continuous Service Temperature: 85°C

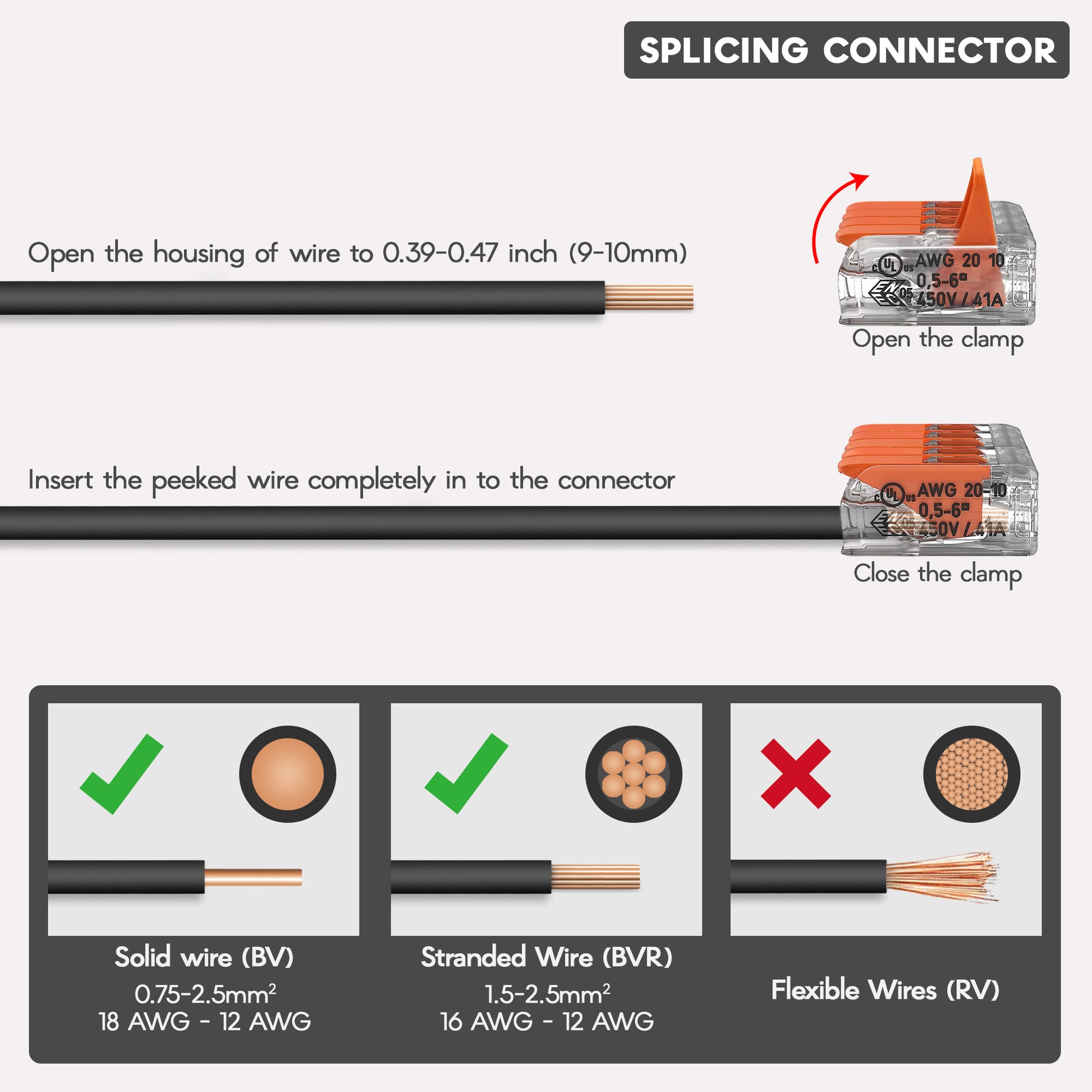

  • Strip Length: 9-10mm

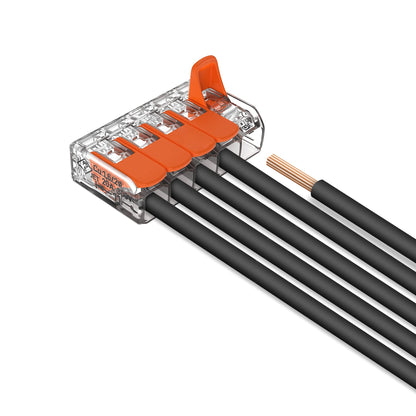

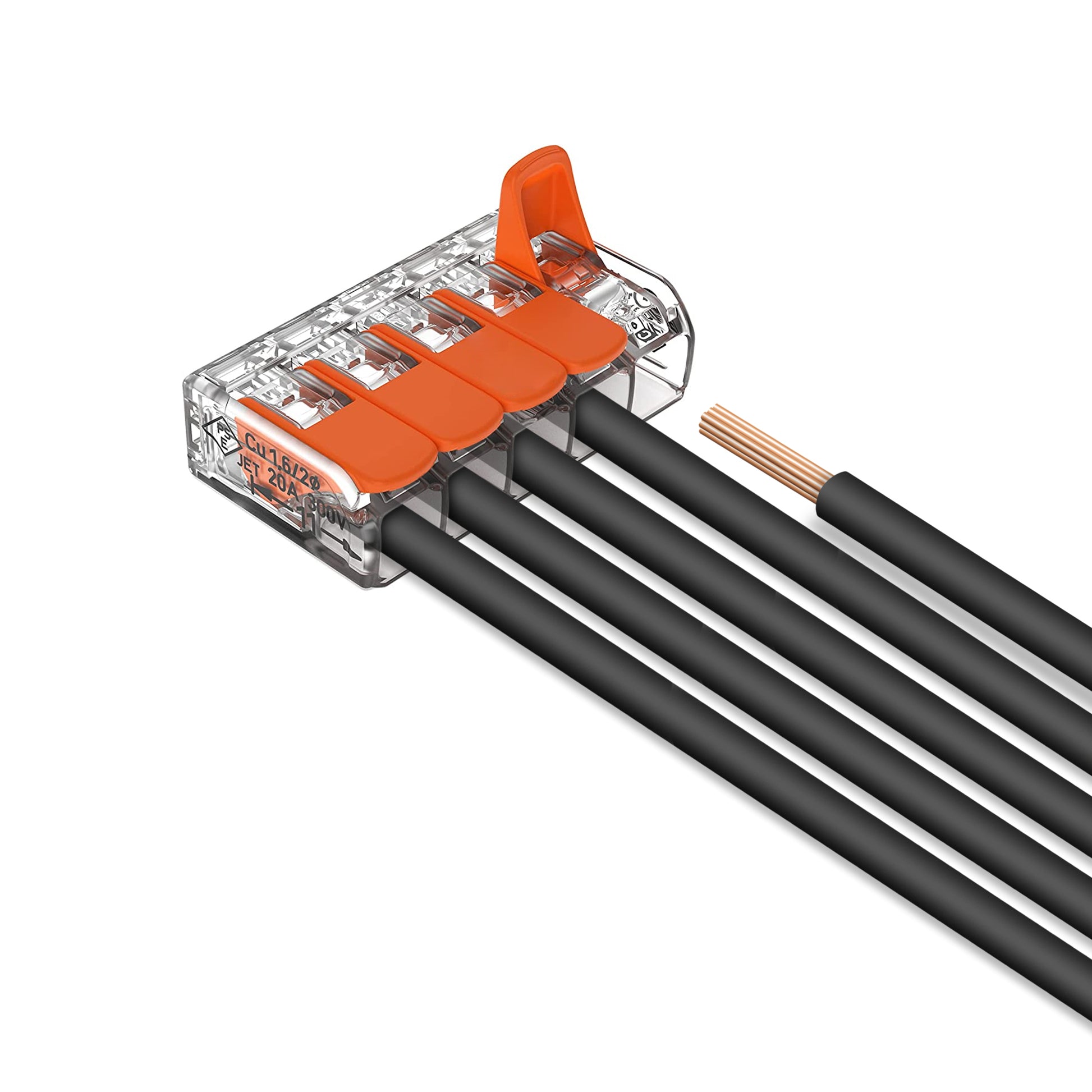

Compact connector with levers

  • Solid conductor size 0.08 to 2.5 mm² /AWG 14
  • Stranded conductor size 0.08 to 2.5 mm² /AWG 14
  • Flexible conductor size 0.08 to 4 mm² /AWG 28 - 12


Features:

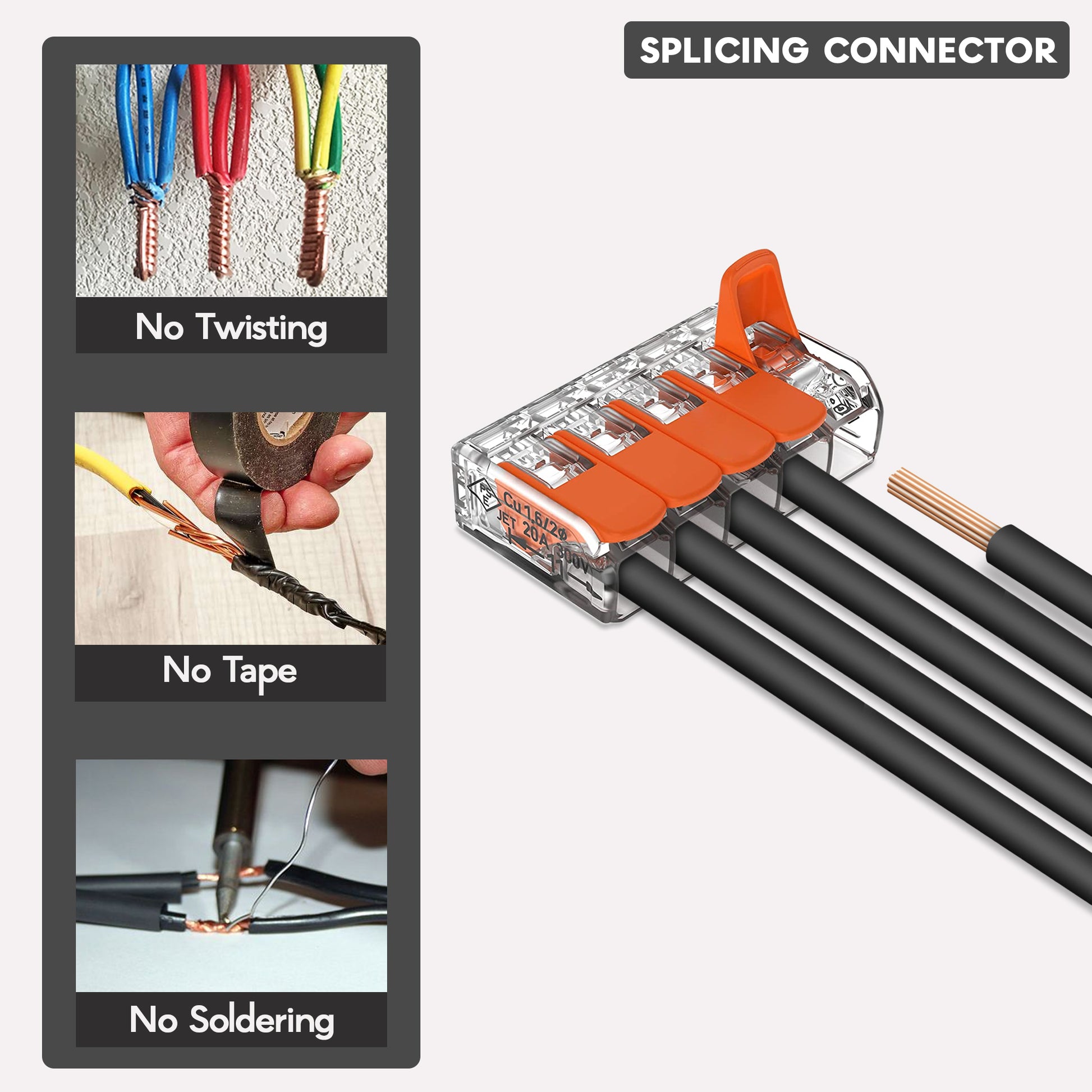

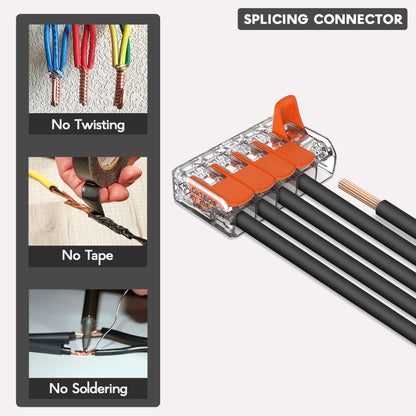

  • Security - no loose wires, tape embrittlement danger, safe and transparent visible.
  • Convenience - a test hole, measure the voltage without removing tape.
  • Quick - direct plug, plug the wrong can be pulled out, followed again.
  • Reliable - Each contact shrapnel independent, fit different wire diameter, safety shorting.


Package included:

  • 5-way connector only
