13A Switched Socket White, 1 Gang, 2 Gang & USB~4034

General Specifications

• Product Type: Switched Wall Socket
• Available Variants: 1 Gang, 2 Gang, 2 Gang with USB
• Mains Current Rating: 13A
• Voltage Rating: 250V AC
• Colour: White
• Socket Standard: UK 3-Pin

Variant 1: 1 Gang Single Pole Socket

• Gang: 1 Gang
• Switching: Single Pole
• Switch Type: Rocker Switch
• Dimensions: 86 × 86mm
• Terminal Identification: L / N / E
• Faceplate: Square Profile with Rounded Outer Corners

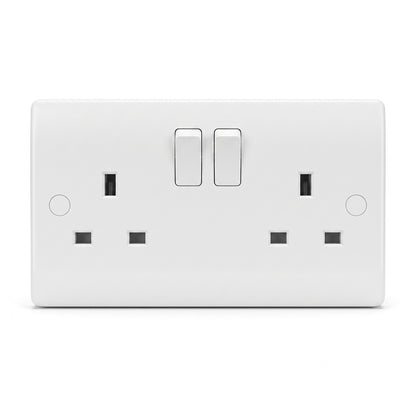

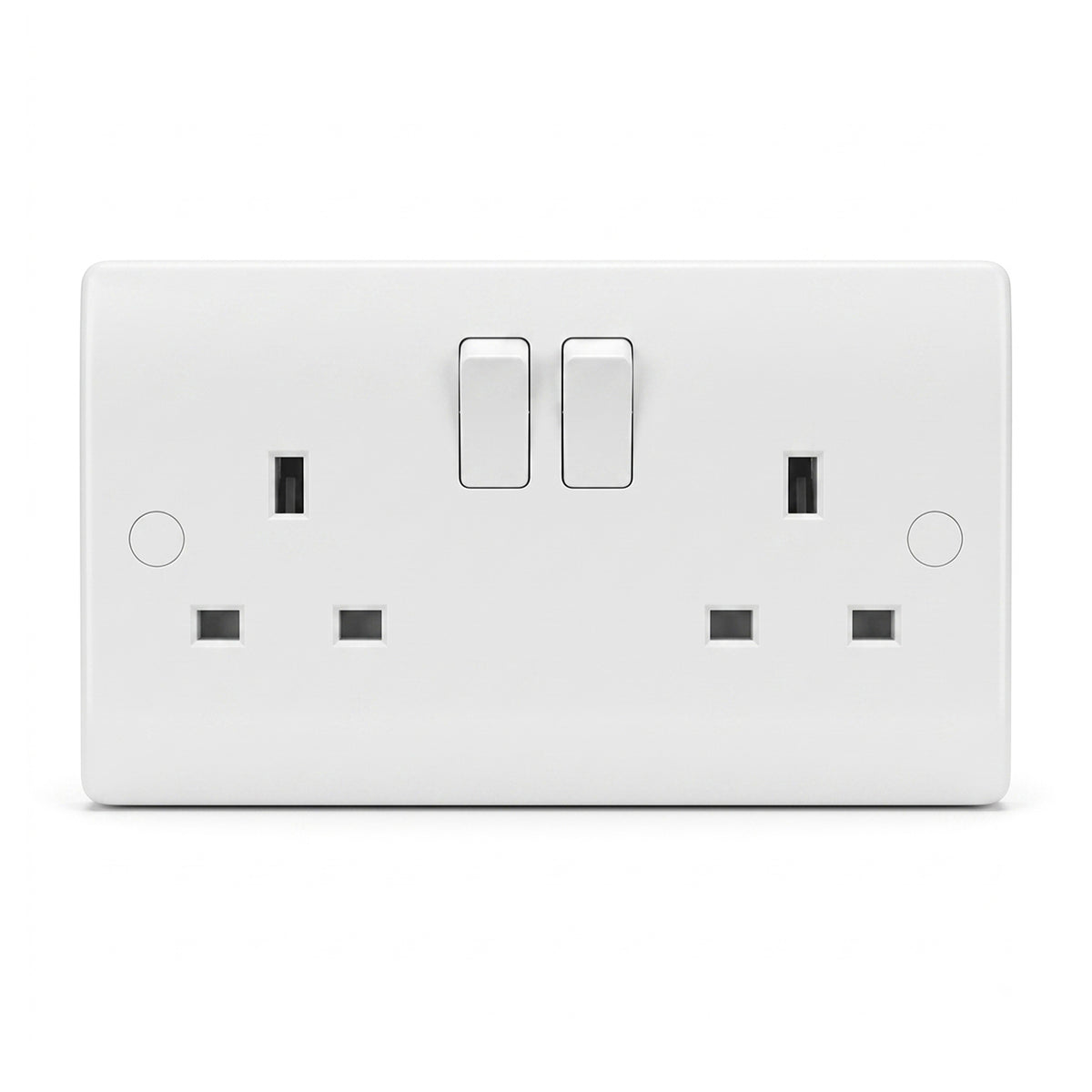

Variant 2: 2 Gang Double Pole Socket

• Gang: 2 Gang
• Switching: Double Pole, Rocker Action
• Standard: BS 1363-2
• Dimensions: 146mm W × 86mm H
• Recommended Minimum Wall Box Depth: 25mm
• Terminals: Angled with Captive Screws
• Earthing: Twin Earth Terminals

Variant 3: 2 Gang Socket with USB-A & USB-C

• Gang: 2 Gang
• Switching: Double Pole, Rocker Action
• Mains Rating: 13A, 250V AC
• USB Ports: 1 × USB-A, 1 × USB-C
• USB-A : 5V, 2.4A MAX
• USB-C :5V 3.1A MAX

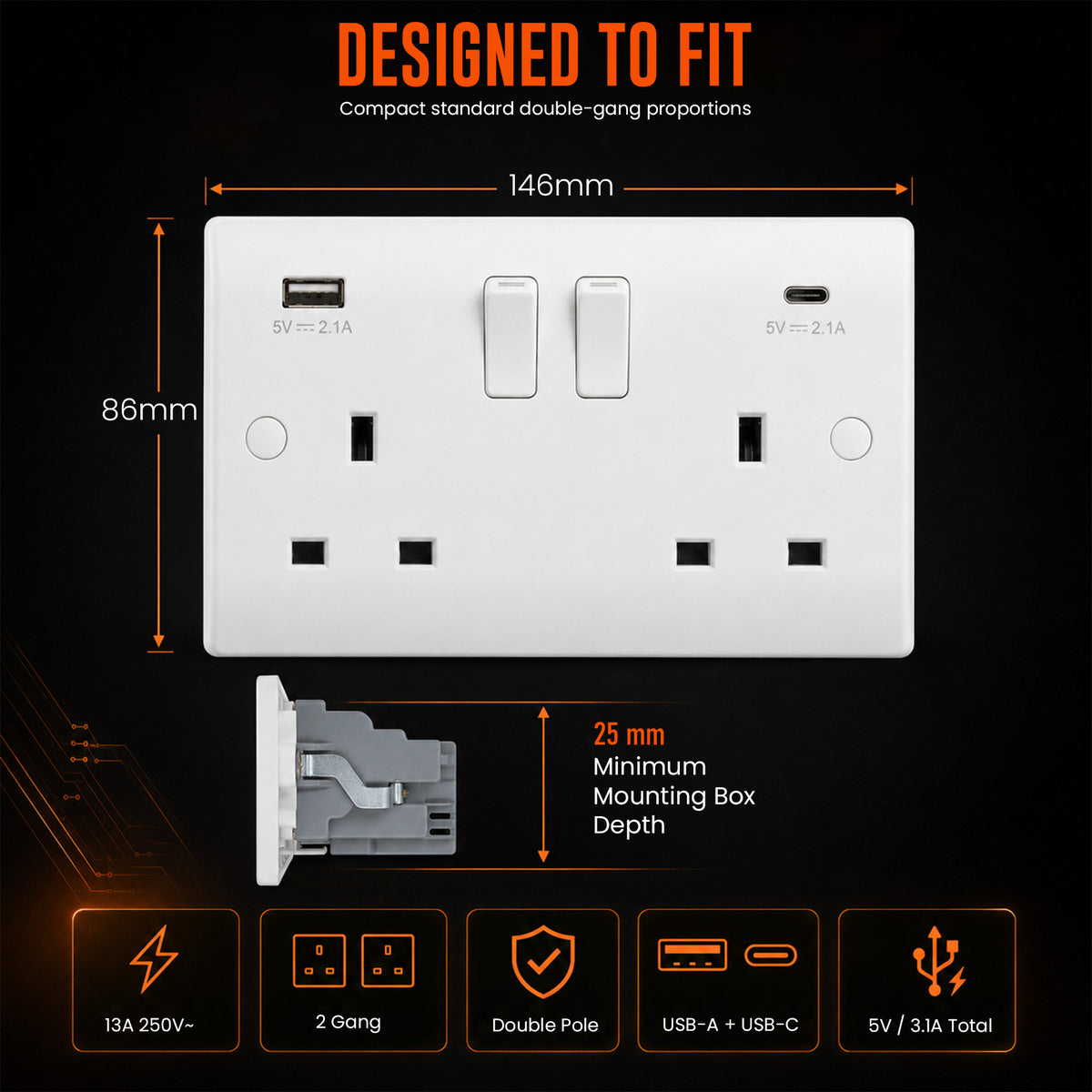

• Faceplate Dimensions: 146 × 86mm
• Recommended Minimum Back Box Depth: 25mm
• Earthing: Twin Earth Terminals
• Standards: BS 1363-2, BS EN 62368
• Safety Features: Internal Safety Shutters and Child Protection

 Package Includes

• 1 × Select Variation Switched Socket
